P/N : GB900-080-000 Catégories : ,

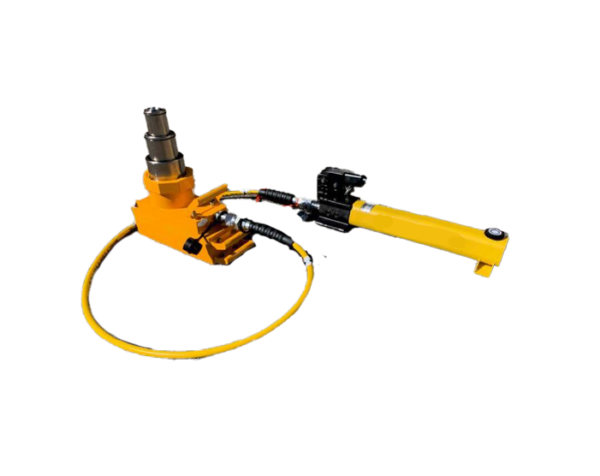

Landing gear jack

Hydraulic Jack Wheel Change Mod. 5/3/102 is designed only to lift the H160 helicopter at its landing gear. The jack is used to perform wheel changes, it can also be used in the maintenance task servicing trains. The material consists of :

  • 1 jack
  • 2 spacers
  • 1 pump
  • 1 hose

Spacers allow to vary the heights of approaches.



Exporter la fiche en PDF

Demande de devis

P/N : GB900-080-000 Catégories : ,
Applicabilité : H160
Informations techniques

Informations complémentaires

Applicabilité

Caractéristiques principales

– Jack specifications closed height : 102 mm
– Maximum load : 5000 kg
– Hydraulic lift : 252 mm
– Extended height 303 mm
– Ball radius at adapter : 12,7 mm (1/2??)
– Screw extension 51 mm
– Length of base 350 mm
– Operating temperature : -5?C to +50?C
– Hydraulic fluid MIL-PRF-83282
– Oil system capacity 3 lt (total)

Accessories :
– Spacer type 1 H + 25 mm
– Space type 2 H + 50 mm
ATA

07-10
WEIGHT

32 kg
SIZE

78,8 x 49,3 x 28,4 cm
